The XuanNiao Series Portable XinChuang Platform

Model

Size

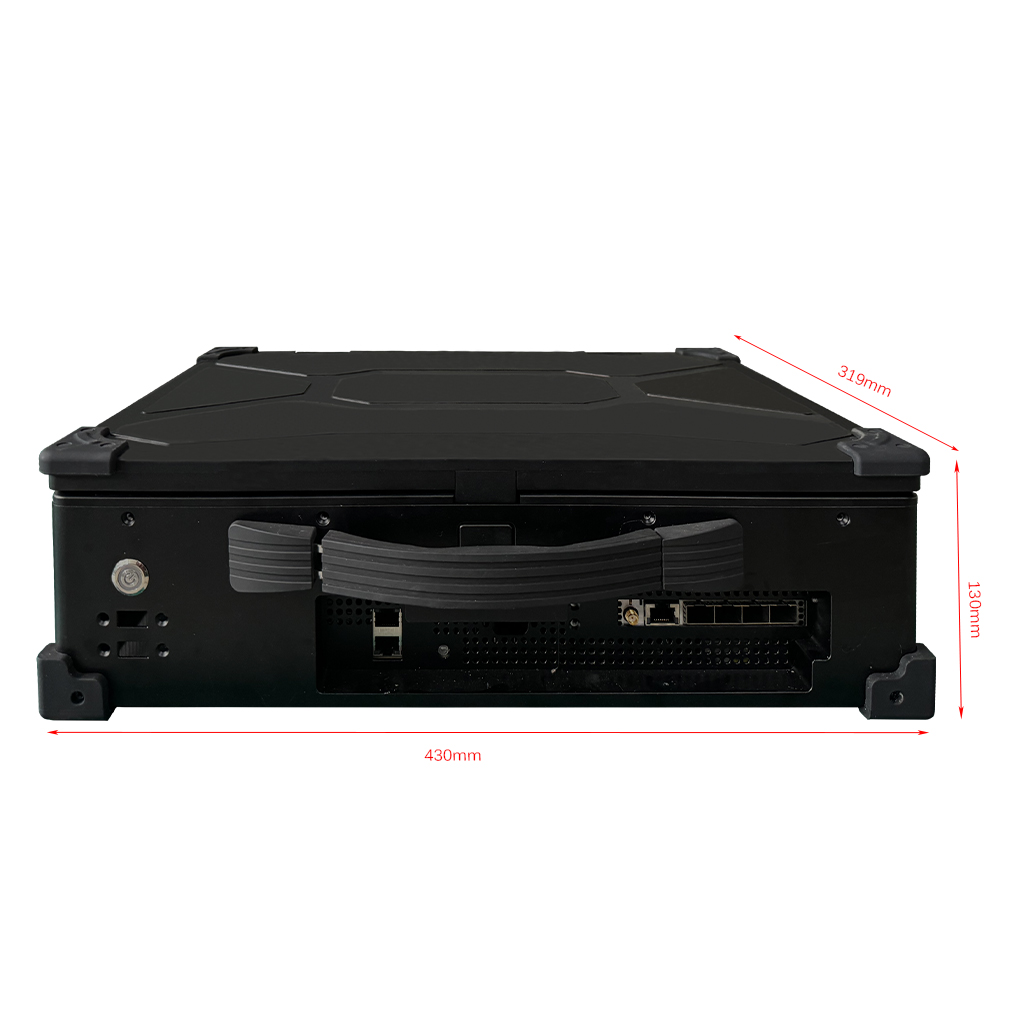

430*319*130mm

Weight

8kg

CPU

1 piece，8 cores

Memory

64/128/256G

Slot

Test port

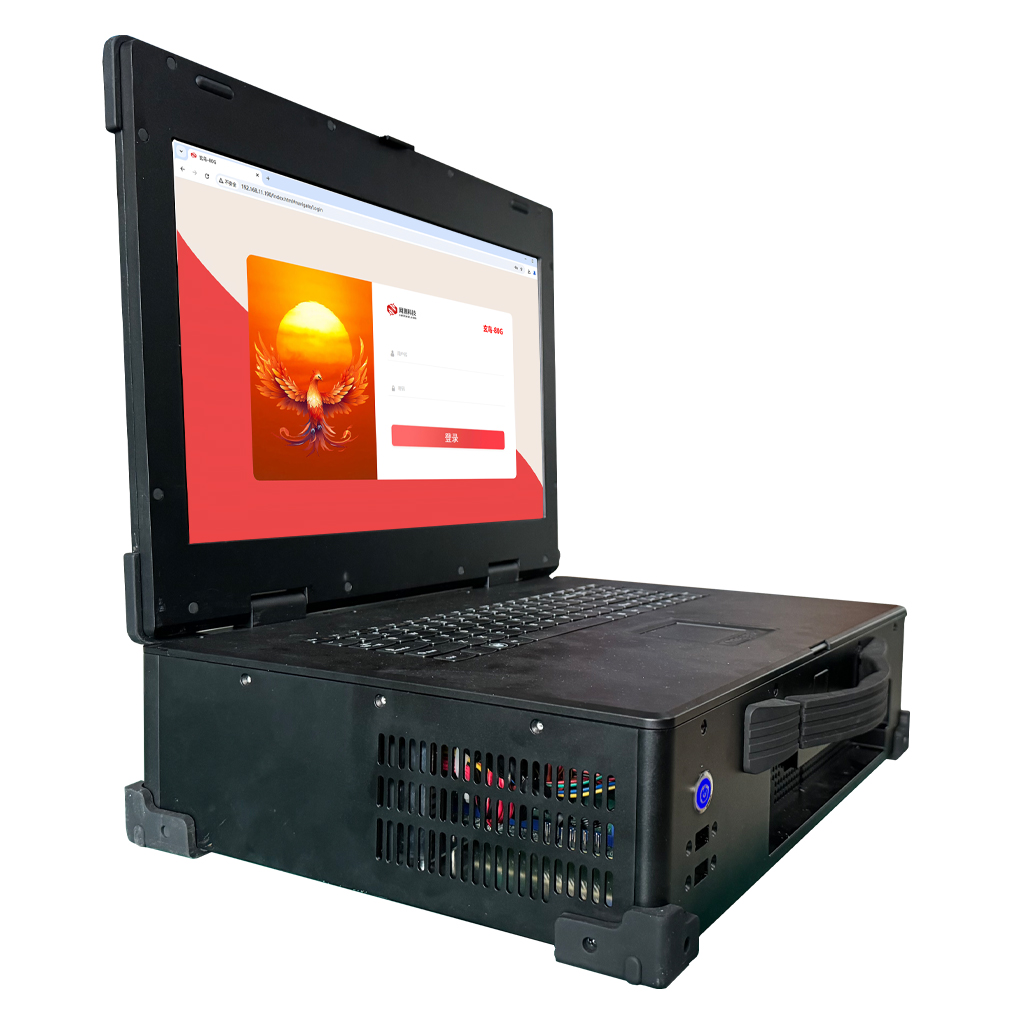

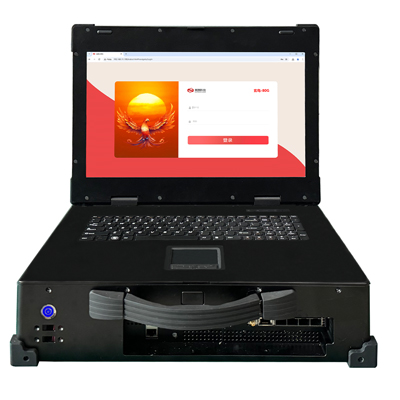

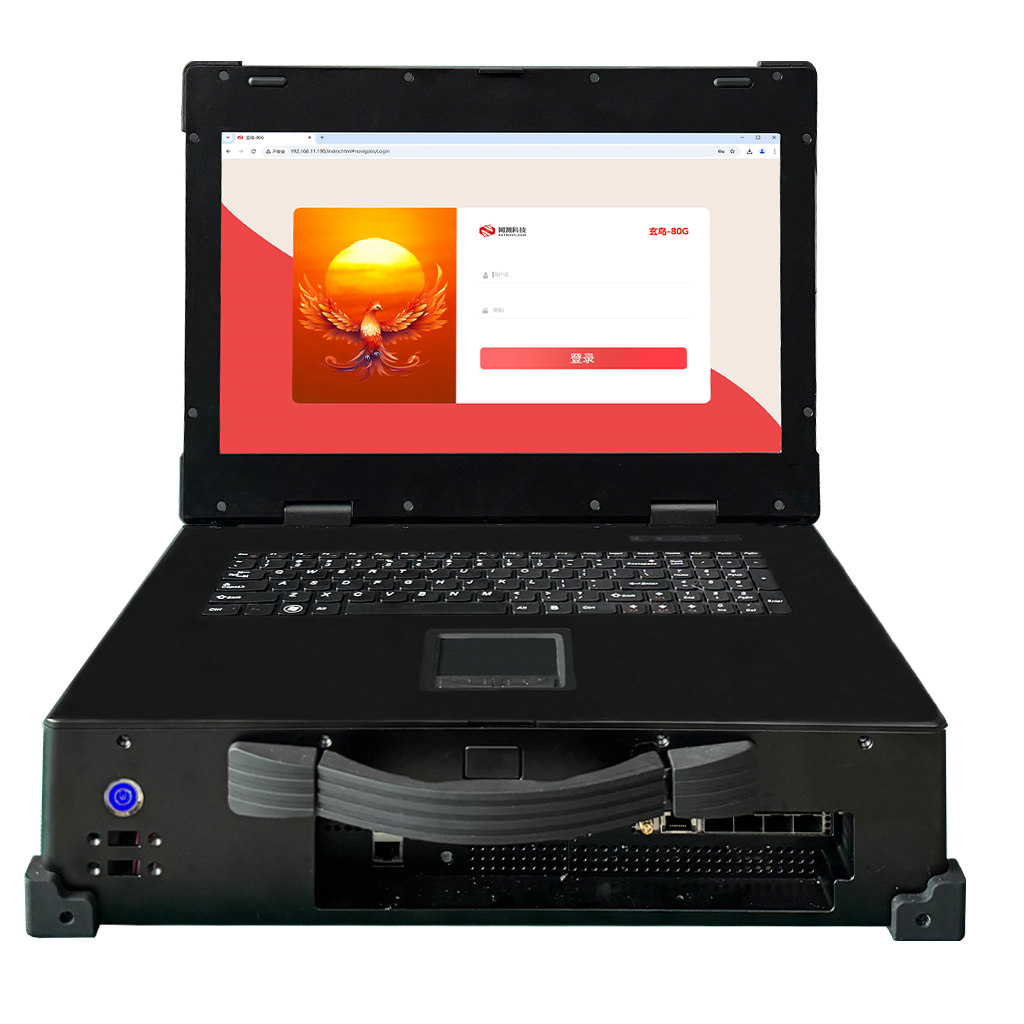

demands of localization, information security, and high-performance testing. Its side-mounted portable handle allows for easy transportation, making it ideal for on-site testing and mobile office scenarios. The device integrates a display screen, keyboard, and touchpad mouse, providing a seamless operational experience without the need for additional peripherals to complete testing tasks.

HTTP dual-stack superposition performance	Cps：64,000	Throughput：16G		Cc：2,400,000
HTTP new sessions per second	230,000	HTTP max Cc sessions	22,500,000	HTTP Maximum Bandwidth Rate	26G
HTTPS Cps	9,600	HTTPS Cps GM suite	1,600	HTTPS max Cc sessions	758,000
HTTPS max Cc sessions GM suite	758,000	HTTPS Maximum Bandwidth Rate	13G	HTTPS max throughput GM suite	2.1G
RFC2544 UDPThroughput rate unidirectional 64 bytes	67,000	RFC2544 UDPThroughput rate bidirectional 64 bytes	37,600	RFC2544 UDPThroughput rate unidirectional 1500 bytes	50G
RFC2544 UDPThroughput rate bidirectional 1500 bytes	100G	UDP PPS Unidirectional 64 bytes	58,670,000	TCP new connections per second	620,000

Product features

Domestic Hardware Platform

Equipped with domestic processors such as Hygon, it ensures hardware-level autonomy and control, meeting the requirements of localization and information security.
Portable and Flexible

Lightweight design, easy to carry, suitable for on-site testing and mobile office needs.
Customized Services

Provides tailored solutions based on user requirements to meet the testing needs of specific industries.Offers rapid technical support to ensure timely fulfillment of user demands.
